Name:DJI M300 RTK Drone Bundle

Product Description

DJI M300 RTK Drone Bundle

You will receive:
1 Matrice 300 RTK (w Shield Basic) aircraft drone

1 Zenmuse H20T
2 TB60 Intelligent Flight Batteries
1 BS60 Intelligent Battery Station (charger)
1 DJI Smart Controller

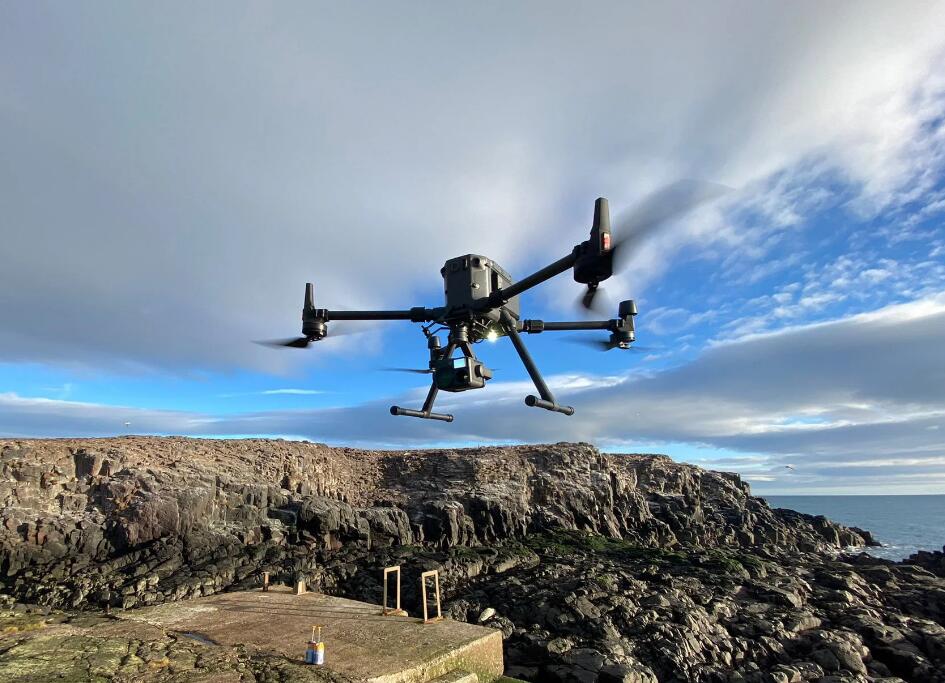

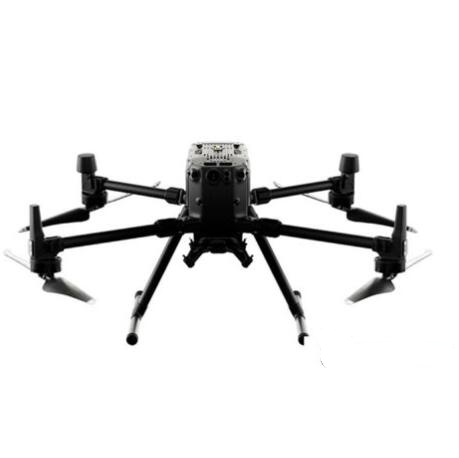

About the M300 RTKThe Matrice 300 RTK is DJI’s latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 Directional Sensing & Positioning and more, the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.

MAIN FEATURES:
15 km Max Transmission
55-min Max Flight Time
6 Directional Sensing & Positioning
Primary Flight Display
IP45 Rating
-20°C to 50°C Operating Temperature
Hot-swappable Battery
UAV Health Management System


SPECS:
Dimensions: - Unfolded, propellers excluded, 810×670×430 mm - Folded, propellers included, 430×420×430 mm
Weight: Approx. 6.3 kg (with two TB60 batteries)
Flight Time: 55 min
Max. Speed: 23 m/s (S mode / modo S) - 17 m/s (P mode / modo P)
Max. Service Ceiling: 5000m (above sea level / sobre el nivel del mar) with 2110 propellers - 7000m with 2195 propellers
FOV: Vision system - Forward/Backward/Downward: 65° (H), 50° (V) - Left/Right/Upward: 75°(H), 60°(V)
Infrared ToF FOV 30° (±15°)
Supported Gimbal Configurations: Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
Supported DJI Gimbals: Zenmuse XT2/XT S/Z30/H20/H20T
Hovering Accuracy: (GPS) (P-mode with GPS)
    Vertical: ±0.1 m (Vision System enabled) - ±0.5 m (GPS enabled) - ±0.1 m (RTK enabled)
    Horizontal: ±0.3 m (Vision System enabled) - ±1.5 m (GPS enabled) - ±0.1 m (RTK enabled)
RTK Positioning Accuracy: RTK - 1 cm+1 ppm (Horizontal) - 1.5 cm + 1 ppm (Vertical)
Max. Transmission Range (unobstructed, free of interference): - NCC/FCC: 15 km; SRRC/CE/MIC/KCC: 8 km

Zenmuse H20 Specs:
Weight: 828±5 g
Dimensions: 167×135×161 mm
Ingress Protection Rating: IP44
Operating Temperature: -20° to 50° C
1. Gimbal
Angular Vibration Range: ±0.01°
Controllable Range: Pitch -120° to +30°, Yaw: ±320°
Mechanical Range: Pitch: -132.5° to +42.5°, Yaw: ±330°, Roll: -90° to +60°
2. Zoom Camera
Sensor: 1/1.7" CMOS, 20 MP
Lens: DFOV: 66.6°-4°, Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm), Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene), Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
Electronic Shutter Speed: 1 ~ 1/8000 s
ISO Range: 100 - 25600
Video Resolution: 3840x2160@30fps, 1920x1080@30fps
Photo Size: 5184 × 3888
3. Wide Camera
Sensor: 1/2.3" CMOS, 12 MP
Lens: DFOV: 82.9°, Focal length: 4.5 mm (equivalent: 24 mm), Aperture: f/2.8, Focus: 1 m to ∞
Shutter Speed: 1 ~ 1/8000
ISO Range: 100 - 25600
Video Resolution: 1920×1080@30fps
Photo Size: 4056 x 3040
4. Thermal Camera
Sensor: Uncooled VOx Microbolometer
Lens: DFOV: 40.6°, Focal length: 13.5 mm (equivalent: 58 mm), Aperture: f/1.0, Focus: 5 m to ∞
Digital Zoom: 1x, 2x, 4x, 8x
Video Resolution: 640×512 @30 Hz
Image Resolution: 640×512
Image Format: R-JPEG (16 bit)
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
Sensitivity (NETD): ≤50 mK @ f/1.0
Temperature Measurement Method: Spot Meter, Area Measurement
Scene Range: -40 °C to 150 °C (High Gain), -40 °C to 550 °C (Low Gain)
5. Laser Rangefinder
Wave length: 905 nm
Measurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
Measurement accuracy ± (0.2 m + D×0.15%) D is the distance to a vertical surface
6. Storage
Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)

TB60 Battery Specs:

Capacity: 5935 mAh
Voltage : 52.8 V
Battery Type: LiPo 12S
Energy: 274 Wh
Net Weight: Approx. 1.35 kg
Operating Temperature : -4°F to 122°F (-20°C to 50°C)
Ideal storage temperature: 71.6°F to 86°F (22°C to 30°C)
Charging Temperature: -4°F to 104°F (-20°C to 40°C)
NOTE: (When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Charging time using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)
You will receive 1 unit(s) of the D-RTK 2 Mobile Station (Ground Station + Tripod) compatible with the next drones: Agras T16, Agras MG-1P RTK, Phantom 4 RTK, P4 Multispectral, Matrice 210 RTK V2, Matrice 300 RTK.

BS60 Intelligent Battery Station

Dimensions: 501*403*252mm
Net Weight: 8.37kg
Maximum Capacity: TB60 Intelligent Flight Battery × 8, WB37 Intelligent Battery × 4
Input: 100-120 VAC, 50-60 Hz – 220-240 VAC, 50-60 Hz
Max. Input Power: 1070W
Output Power: 100-120 V: 750 W - 220-240 V: 992 W

Operating Temperature: -4°F to 104°F (-20°C to 40°C)
